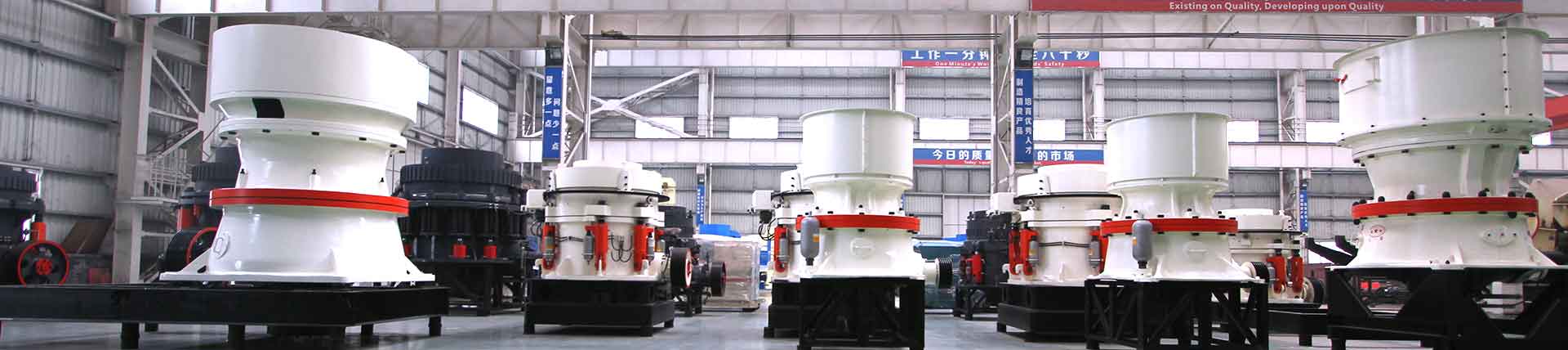

Compound Cone Crusher

Symons cone crusher has the characteristics of large crushing ratio, high efficiency, high processing capacity, low operating cost, convenient adjustment, economical use, etc. It is suitable for various ores and rocks with medium and medium hardness.

Applications

Function

To crush stones ores from big size into required smaller size.

Fields

Used in mining, quarry, construction, road, recycling, etc.

Minerals Processed

over 120 kinds of stones and metallic ores.

Processing Materials of Compound/Symons Cone Crusher

It is widely used for primary secondary fine crushing of granite, river stone, quarry stone, rock, boulder, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.

  • undefined0-10mm
  • undefined10-20mm
  • undefined20-40mm
  • Finished Product
undefined

Working Principle of Compound/Symons Cone Crusher

When the cone crusher is working, through the pulley or coupling, the motor rotates, the drive shaft and the cone of the cone crusher, under the force of the eccentric sleeve, rotate around a fixed point. As a result, the cone crushing wall is sometimes close to the surface of the mortar wall fixed on the adjusting sleeve, sometimes away from it, so that the material is continuously impacted, squeezed and bent in the crushing cavity to realize the crushing of the material.

undefined

Advantages of Compound/Symons Cone Crusher

Large crushing ratio

The combination of high-performance crushing cavity and high crushing frequency greatly improves the processing capacity of the cone crusher.

Laminated crushing

Adopting the principle of inter-granular laminated crushing, the crushed products are mostly cubic structure, which reduces the needle-like materials to a greater extent.

Reliable operation, easy maintenance

Easy to operate and maintain, easy and quick to adjust the discharge opening, saving time and effort during maintenance, especially the liner is easy to quickly replace, reducing downtime.

1
undefined

Hot Issues of Compound/Symons Cone Crusher

We have small, medium and large cone crusher for sale. Professional team will provide customized solution according to your needs.

Hot Sale Models of Compound/Symons Cone Crusher

Symons cone crusher, symons 3ft, symons 4ft, etc, more popular in market.

Symons 7ft, higher crushing efficiency and capacity.

Hot Sale Capacity of Compound/Symons Cone Crusher

30-70t/h, 50-90t/h, etc, usually for small production scale, with low costs.

80-100t/h, 100-150t/h, 300-350t/h, etc, usually for medium and large production scale.

The estimated price of the service

Product price: Price range is about 4000-500,000 dollars. Click for specific price.

Get quotes

Technical parameters

Type Model Diameter
of large
end of
crushing
 cone(mm)
Adjusting
 Range of
Discharge
Opening(mm)
Feed
opening
size of the
open edge
when
recommending
 the min.
Discharge
opening
(mm)
Max.feeding
size(mm)
Processing
capacity
(t/h)
Main
motor
 power
(kw)
Machine
weight
(kg)
PSG 900 0910 914 (3′) 9-22 102 85 45-91 6P   75 9980
0917 13-38 175 150 59-163
0904 3-13 41 35 27-90
0906 3-16 76 65 27-100
PSG 1300 1313 1295 (4¼′) 13-31 137 115 109-181 6P   160 22460
1321 16-38 210 178 132-253
1324 19-51 241 205 172-349
1306 3-16 64 54 36-163
1308 6-16 89 76 82-163
1310 8-25 105 89 109-227
