Hydraulic Cone Crusher

Hydraulic cone crusher realizes the functions of hydraulic adjustment, overload protection and stable production, with higher crushing efficiency and larger production capacity.

Applications

Function

To crush stones ores from big size into required smaller size.

Fields

Used in mining, quarry, construction, road, recycling, etc.

Minerals Processed

over 120 kinds of stones and metallic ores.

Processing Materials of Hydraulic Cone Crusher

It is widely used for primary secondary fine crushing of granite, river stone, quarry stone, rock, boulder, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.

  • undefined0-10mm
  • undefined10-20mm
  • undefined20-40mm
  • Finished Product
undefined

Working Principle of Hydraulic Cone Crusher

When working, the electric motor drives the horizontal shaft and eccentric shaft to move, thereby causing the moving cone to make a conical rotation. During this movement, the moving cone will approach or move away from the fixed cone uninterruptedly, so that the material in the cavity will be impacted and crushed. Then the crushed material is discharged downward through the transmission device.

undefined

Advantages of Hydraulic Cone Crusher

Large crushing ratio

The combination of high-performance crushing cavity and high crushing frequency greatly improves the processing capacity of the cone crusher.

Laminated crushing

Adopting the principle of inter-granular laminated crushing, the crushed products are mostly cubic structure, which reduces the needle-like materials to a greater extent.

Reliable operation, easy maintenance

Easy to operate and maintain, easy and quick to adjust the discharge opening, saving time and effort during maintenance, especially the liner is easy to quickly replace, reducing downtime.

1
undefined

Hot Issues of Hydraulic Cone Crusher

We have small, medium and large cone crusher for sale. Professional team will provide customized solution according to your needs.

Hot Sale Types of Hydraulic Cone Crusher

Symons cone crusher, symons 3ft, symons 7ft, etc, more popular in market.

Hydraulic cone crusher, single-cylinder hydro cone crusher, higher crushing efficiency and capacity.

Hot Sale Capacity of Hydraulic Cone Crusher

30-70t/h, 50-90t/h, etc, usually for small production scale, with low costs.

80-100t/h, 100-150t/h, 300-350t/h, etc, usually for medium and large production scale.

The estimated price of the service

Product price: Price range is about 4000-500,000 dollars. Click for specific price.

Get quotes

Technical parameters

Model Cavity Diameter
of large
end of
crushing
cone
(mm)
Width of
Feeding
Opening(mm)
Max.
feeding
size
(mm)
Adjusting
Range of
Discharge
 Opening
 (mm)
Processing
capacity(t/h)
Main motor
power(kw)
Weight of
Main
Machine
(t)
HPM200 C1 900 210 178 22~38 160~250 160 10.1
C2 155 132 18~38 145~250
C3 130 110 14~38 120~250
F1 118 100 12~25 108~210
F2 90 76 10~25 81~210
F3 70 60 8~25 72~210
HPM300 C1 1100 235 200 26~45 230~445 250 17.8
C2 211 180 20~45 200~445
C3 135 115 16~45 180~445
F1 124 105 14~25 160~220
F2 96 82 12~25 140~220
F3 70 60 8~25 120~220
HPM400 C1 1400 330 280 26~51 270~630 315 25
C2 200 170 22~51 243~630
C3 152 130 16~51 210~630
F1 135 115 12~25 162~370
F2 106 90 10~25 126~370
F3 80 68 8~25 104~370
HPM500 C1 1500 335 285 32~51 365~790 400 34.1
C2 229 190 25~51 328~790
C3 180 152 19~51 280~790
F1 152 130 13~25 202~450
F2 124 105 10~25 158~450
F3 88 75 8~25 122~450
HPM800 C1 2000 385 326 32~51 616~1100 630 69.2
C2 350 298 25~51 522~1100
C3 280 238 16~51 380~1100
F1 160 136 13~25 328~730
F2 120 102 10~25 270~730
F3 90 77 8~25 166~730

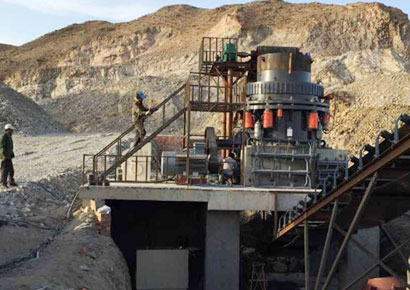

Related Projects of Hydraulic Cone Crusher

Our products have been exported to over 90 countries, such as Philippine, Pakistan, Vietnam, Papua New Guinea, Feiji, Tanzania, Ghana, Cameroon, Kenya, South Africa, Nigeria, Somalia, etc.
