Mobile Crusher

Mobile crusher is used to process granite, limestone, rock, gravel, basalt, river stone, aggregate, concrete, gold ore, iron ore, coal and other 120 kinds of stones and ores.

Free Inquiry
  • 24 Hours Online Service
  • Reply Within 1 Working Days
  • Company & Factory Visit
Mobile Crusher
  • part1Application of Mobile Crusher

    For mining, quarry, construction, road, etc.

    For granite, aggregate, rock, gravel, coal, ore, etc.

    For minerals primary fine crushing and screening.

  • part2Types of Mobile Crusher

    Mobile Jaw Crusher–usually used for primary crushing.

    Mobile Impact Crusher–usually for secondary and fine crushing and screening.

    Mobile Cone Crusher–better for large production scale.

  • part3Hot Sale Production Capacity of Mobile Crusher

    30-50t/h, 60-80t/h, etc.

    80-100t/h, 100-120t/h, 120-150t/h, 150-200t/h, etc.

    150-200t/h, 250-300t/h, >400t/h, etc.


Projects of Mobile Crusher

80-100t/h Mobile Crusher in Pakistan

80-100t/h Mobile Crusher in Pakistan

Processing Material:limestone

Product Configuration: mobile impact crusher

Project Details: i want the mobile crusher for processing limestone, with capacity about 100t/h, output size 0-19 and 40-80mm. The plant shall be starting at site within two month. Please send me the details as soon as possible. I await for your price list and machine introduction.

100-120t/h Mobile Crusher in South Africa

100-120t/h Mobile Crusher in South Africa

Processing Material:coal

Product Configuration:mobile hammer crusher

Customer Feedback: according to our specific needs and the features of coal, the engineer recommended the mobile crusher as a choice. mobile crusher has high flexibility and mobility, which is better for the production in coal mine. The reasonable product configuration improves the crushing efficiency.

150-180t/h Mobile Crusher in Kenya

150-180t/h Mobile Crusher in Kenya

Processing Material:limestone

Product Configuration:mobile jaw crusher+mobile cone crusher

Project Details: I am looking for mobile crusher plant for processing limestone. I am from Kenya, I want limestone crusher with capacity 150-180t/h, the input size is 200-400mm, the final size needs to be 0-10mm, 10-20mm. I await for your price list and machine introduction.

200-220t/h Mobile Crusher in Tanzania

200-220t/h Mobile Crusher in Tanzania

Processing Material:basalt

Product Configuration:mobile cone crusher+mobile jaw crusher

Project Details: I am looking for the crusher for processing basalt, a kind of hard rocks in Tanzania. The throughput i need is about 200 tones per hour. Would you please send me the quote of your stationary crusher and mobile crusher. I need to make a comparison. Thank you.

  • 1
    According to my needs, FTM Machinery made customized solution for me. The final product meets my requirements. Reliable.
  • 2
    I know the FTM Machinery from one of my friends. It is a good choice for quarry stones crushing. Trustworthy.
  • ff
    By searching the Internet, I found FTM Heavy Machinery, the stone crusher plant has large processing capacity with low failure rate, reliable.
  • 4
    I went to China and visit the company and factory. After put into production, the reliable performance of the machine guarantees the production efficiency.

Technical Parameters

more details

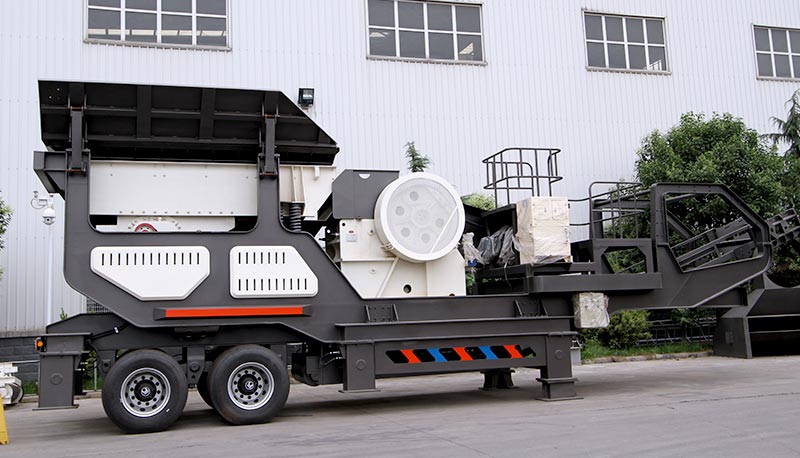

Wheel-type Mobile Jaw Crusher

Wheel-type Mobile Impact Crusher

Wheel-type Mobile Cone Crusher

Model FTM938HD86 and FTM1149HD98

Model FTM938HD86 FTM1149HD98
Transportation lenght(mm) 12600 13500
Transportation Width(mm) 2600 2700
Transportation Height(mm) 3870 4200
Maximum Lenght(mm) 12500 14000
Maximum Width(mm) 4100 4500
Maximum Height(mm) 4100 4900
Weight(t) 39 57
tIRE Configuration Dualaxial Dualaxial
Jaw Crusher HD86 HD98
Maximum Feeding Size(mm) 500 550
Discharge opening range 50-150 75-175
Capacity(t/h) 85-275 110-350
Vibrating Feeder ZSW380×95 ZSW420×110
Main Belt Conveyor B800×8.5m B1000×9.5m
Side-opening Belt conveyor(optional) B500×3m B650×3.5m
Gensrt(optional) 200KW 250KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-10

Model FTM1349HD110 and FTM1349HD125

Model FTM1349HD110 FTM1349HD125
Transportation lenght(mm) 14500 15200
Transportation Width(mm) 2800 2900
Transportation Height(mm) 4450 4500
Maximum Lenght(mm) 16100 16700
Maximum Width(mm) 5100 5100
Maximum Height(mm) 5000 5300
Weight(t) 55 65
Tire Configuration Dualaxial Dualaxial
Jaw Crusher HD110 HD125
Maximum Feeding Size(mm) 660 800
Discharge opening range 100-200 125-225
Capacity(t/h) 215-510 280-650
Vibrating Feeder ZSW490×130 ZSW490×130
Main Belt Conveyor B1000×11m B1200×11m
Side-opening Belt conveyor(optional) B650×4m B650×4m
Gensrt(optional) 270KW 400KW
Iron separator(optional) RCYD(C)-10 RCYD(C)-12

Model FTM938F1210 and FTM938F1214 and FTM1149F1315

Model FTM938F1210 FTM938F1214 FTM1149F1315
Transportation length(mm) 12000 12000 13900
Transportation Width(mm) 2550 2550 2900
Transportation Height(mm) 3900 3900 4450
Maximum Length(mm) 12500 12500 13900
Maximum Width(mm) 3250 3260 3250
Maximum Height(mm) 5100 5200 5200
Weight(t) 39 44 54
Impact crusher PE-1210 PE-1214 PF-1315
Maximum Feeding Size(mm) 350 350 500
Capacity(t/h) 70-130 100-180 130-250
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M
Side-opening Belt conveyor(optional) B500×3.2m B500×3.2m B650×4m
Gensrt(optional) 320KW 320KW 400KW
iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10

Model FTM938F1110 and FTM1349F1315

Model FTM938F1110 FTM1349F1315
Transportation length(mm) 15450 15450
Transportation Width(mm) 2950 2950
Transportation Height(mm) 4500 4500
Maximum Length(mm) 15450 15450
Maximum Width(mm) 3250 3250
Maximum Height(mm) 5200 5200
Weight(t) 62 62
Impact crusher HD1110 HD1315
Maximum Feeding Size(mm) 400 700
Capacity(t/h) 112 280
Vibrating Feeder ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×11M B1200×11M
Side-opening Belt conveyor(optional) B650×4m B650×4m
Gensrt(optional) 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-12
Model FTM3S185GYS300 FTM3S216GYS400 FTM3S216HP300
Transportation length(mm) 14500 15000 16000
Transportation Width(mm) 3000 3000 4550
Transportation Height(mm) 4400 4500 4600
Maximum Length(mm) 17000 16000 17000
Maximum Width(mm) 3400 3900 6900
Maximum Height(mm) 5800 6500 4700
Weight(t) 34.5 49.5 41
Tire Configuration 并装双轴 并装三轴 并装三轴
Cone crusher GYS300 GYS400 HP300
Discharging belt Conveyor B650×15M×2 B800×15M×2 B800×15M×2
Return belt conveyor B650×14M B800×14M B800×16M
CONveyor Belt For Final Products B500×15M B800×6M B650×15M×2
Under Virbrating Screen B800×7M B800×8M B800×9M
Vibrating Screen 3YK1854 3YK2160 3YK2160

Mobile Crusher Price

Specific price is determined by many factors, such as stone crusher types, models, product configuration, etc.

As leading stone crusher manufacturer and exporter in China, our mobile crusher are factory-direct sold with guaranteed quality and factory price, saving costs, better service.
