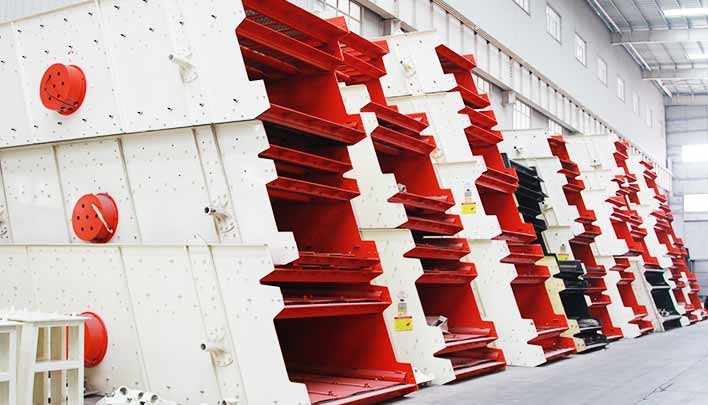

Vibrating Screen

Working Principle of Vibrating Screen

The vibrating screen is mainly composed of a screen box, a vibration exciter, a suspension (or support) device and a motor. The motor drives the main shaft of the exciter to rotate through the V-belt, and the screen box is vibrated due to the centrifugal inertia force of the unbalanced weight on the exciter. By changing the eccentric shaft of the exciter, different amplitudes can be obtained.

Advantages of Vibrating Screen

High screening efficiency

Due to the strong vibration of the screen box, the problems of material blocking the screen holes is reduced, so that the screen has a higher screening efficiency and productivity.

Simple structure, easy operate

The structure is simple and the screen surface is easy to disassemble and replace.

Long service life

A small amount of wearable parts are made of super hard and wear-resistant materials, which is especially suitable for easy replacement of accessories.

Hot Issues of Vibrating Screen

We have small, medium and large vibrating screen for sale. Professional team will provide customized solution according to your needs.

Hot Sale Models of Vibrating Screen

2YK1230, 3YK1230, 2YK1237, suitable for small prodution scale.

3YK1854, 4YK1854, 2YK2160, suitable for medium and large production scale.

Hot Sale Production Capacity of Jaw Crusher

10-20m³/h, 20-50m³/h, etc, usually for small production scale, with low costs.

60-100m³/h, 100-150m³/h, 250-300m³/h, etc, usually for medium and large production scale.

Vibrating Screen

HX Series Vibrating Screen

Model	Sieve Layer	Sieve Area (㎡)	Mesh Size (mm)	Max.Feeding Size (mm)	Processing capacity (m³/h)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Power (kw)	Sieve Obliquity (°)	Sieve Specification (mm)	Dimensions (L×W×H) (mm)
2YK1230	2	7.2	4-50	200	12-78	970	6	6P 7.5	20	1200×3000	3530×1885×920
3YK1230	3	10.8	4-50	200	13-80	970	6	6P 7.5	20	1200×3000	3675×1885×1320
2YK1237	2	8.88	4-50	200	15-86	970	6	6P 7.5	20	1200×3700	4230×1990×920
3YK1237	3	13.32	4-50	200	16-90	970	6	6P 7.5	20	1200×3700	4375×1990×1320
2YK1548	2	14.4	5-50	200	22.5-162	970	6	6P 11	20	1500×4800	5355×2195×1030
3YK1548	3	21.6	5-50	200	22.5-162	970	6	6P 15	20	1500×4800	6055×2195×1740
4YK1548	4	28.8	5-50	200	22.5-162	970	6	6P 18.5	20	1500×4800	6195×2195×2120
2YK1854	2	19.44	5-80	200	32-312	970	6	6P 22	20	1800×5400	6515×2555×1370
3YK1854	3	29.16	5-80	200	32-312	970	6	6P 22	20	1800×5400	6655×2555×1750
4YK1854	4	38.88	5-80	200	32-336	970	6	6P 22	20	1800×5400	6790×2555×2130
2YK2160	2	25.2	5-100	200	50-475	970	6	6P 30	20	2100×6000	7200×2945×1580
3YK2160	3	37.8	5-100	200	50-475	970	6	6P 30	20	2100×6000	7340×2945×1980
4YK2160	4	50.4	5-100	200	50-497	970	6	6P 37	20	2100×6000	7490×2945×2380
2YK2460	2	28.8	5-100	200	65-550	970	6	6P 30	20	2400×6000	7200×3200×1580
3YK2460	3	43.2	5-100	200	70-620	970	6	6P 37	20	2400×6000	7340×3200×1980
4YK2460	4	57.6	5-100	200	80-680	970	6	6P 45	20	2400×6000	7490×3200×2380
2YK2866	2	31	5-100	200	70-650	970	6	6P 37	20	2800×5600	6950×3610×1790
3YK2866	3	47	5-100	200	80-700	970	6	6P 45	20	2800×5600	7130×3610×2270
4YK2866	4	62	5-100	200	90-750	970	6	6P 55	20	2800×5600	7300×3610×2750
2YK2873	2	39.2	5-100	200	70-680	970	6	6P 37	20	2800×6500	7850×3587×1790
3YK2873	3	58.8	5-100	200	80-720	970	6	6P 45	20	2800×6500	8025×3587×2270
4YK2873	4	58.8	5-100	200	90-950	970	6	6P 55	20	2800×6500	8200×3587×2750

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sieve Layer	Sieve Obliquity (°)	Motor Power (kw)	Vibrating Frequency (r/min)	Max.Feeding Size (mm)	Capacity (t/h)	Dimensions(mm) （L×W×H）
2HX1545	2	18	15	780-900	200	45-500	5380×2295×1410
3HX1545	3	18	18.5	780-900	200	55-500	5575×2295×1990
4HX1545	4	18-20	22	780-900	200	65-500	5765×2295×1990
2HX1855	2	18	18.5	780-900	200	55-600	5680×2565×1450
3HX1855	3	18	22	780-900	200	65-600	5900×2565×2110
4HX1855	4	18-23	22	780-900	200	75-600	6030×2565×2500
2HX2165	2	18	30	780-900	200	65-700	7160×2990×1690
3HX2165	3	18	30	780-900	200	75-700	7380×2990×2365
4HX2165	4	18-23	37	780-900	200	85-700	7430×2990×2500
2HX2465	2	18	37	780-900	200	80-800	7160×3290×1690
3HX2465	3	18	37	780-900	200	90-800	7380×3290×2365
4HX2465	4	18-23	37	780-900	200	100-800	7430×3290×2500
2HX2765	2	18	37	780-900	200	100-900	7180×3570×1805
3HX2765	3	18	45	780-900	200	110-900	7390×3570×2445
4HX2765	4	18-23	45	780-900	200	120-900	7480×3570×2715
2HX3065	2	18	37	780-900	200	110-1200	7180×3870×1805
3HX3065	3	18	45	780-900	200	120-1200	7390×3870×2445
4HX3065	4	18-23	45	780-900	200	130-1200	7480×3870×2715
2HX3075	2	18	22×2	780-900	300	120-1300	8700×4055×1980
3HX3075	3	18	37×2	780-900	300	130-1300	8940×4120×2720

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
