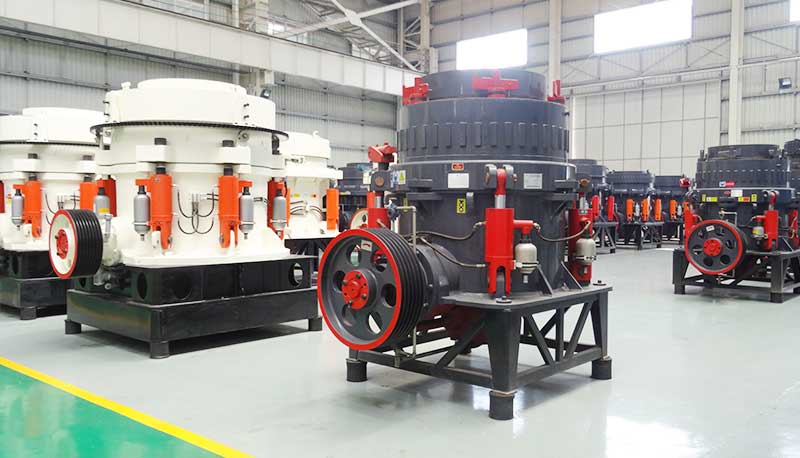

Cone Crusher Machine

Cone crusher has the characteristics of large crushing ratio, high efficiency, high processing capacity, low operating cost, convenient adjustment, economical use, etc. It is suitable for various ores and rocks with medium and medium hardness.

Applications

Function

To crush stones ores from big size into required smaller size.

Fields

Used in mining, quarry, construction, road, recycling, etc.

Minerals Processed

over 120 kinds of stones and metallic ores.

Processing Materials of Cone Crusher

It is widely used for primary secondary fine crushing of granite, river stone, quarry stone, rock, boulder, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.

  • undefined0-10mm
  • undefined10-20mm
  • undefined20-40mm
  • Finished Product
undefined

Working Principle of Cone Crusher

When the cone crusher is working, through the pulley or coupling, the motor rotates, the drive shaft and the cone of the cone crusher, under the force of the eccentric sleeve, rotate around a fixed point. As a result, the cone crushing wall is sometimes close to the surface of the mortar wall fixed on the adjusting sleeve, sometimes away from it, so that the material is continuously impacted, squeezed and bent in the crushing cavity to realize the crushing of the material.

undefined

Advantages of Cone Crusher

Large crushing ratio

The combination of high-performance crushing cavity and high crushing frequency greatly improves the processing capacity of the cone crusher.

Laminated crushing

Adopting the principle of inter-granular laminated crushing, the crushed products are mostly cubic structure, which reduces the needle-like materials to a greater extent.

Reliable operation, easy maintenance

Easy to operate and maintain, easy and quick to adjust the discharge opening, saving time and effort during maintenance, especially the liner is easy to quickly replace, reducing downtime.

1
undefined

Hot Issues of Cone Crusher

We have small, medium and large cone crusher for sale. Professional team will provide customized solution according to your needs.

Hot Sale Types of Cone Crusher

Symons cone crusher, symons 3ft, symons 7ft, etc, more popular in market.

Hydraulic cone crusher, single-cylinder hydro cone crusher, higher crushing efficiency and capacity.

Hot Sale Production Capacity of Cone Crusher

30-70t/h, 50-90t/h, etc, usually for small production scale, with low costs.

80-100t/h, 100-150t/h, 300-350t/h, etc, usually for medium and large production scale.

The estimated price of the service

Product price: Price range is about 4000-500,000 dollars. Click for specific price.

Get quotes

Technical parameters

Cone Crusher Machine

Cone Crusher Machine

Cone Crusher Machine

Type Model Diameter
of large
end of
crushing
 cone(mm)
Adjusting
 Range of
Discharge
Opening(mm)
Feed
opening
size of the
open edge
when
recommending
 the min.
Discharge
opening
(mm)
Max.feeding
size(mm)
Processing
capacity
(t/h)
Main
motor
 power
(kw)
Machine
weight
(kg)
PSG 900 0910 914 (3′) 9-22 102 85 45-91 6P   75 9980
0917 13-38 175 150 59-163
0904 3-13 41 35 27-90
0906 3-16 76 65 27-100
PSG 1300 1313 1295 (4¼′) 13-31 137 115 109-181 6P   160 22460
1321 16-38 210 178 132-253
1324 19-51 241 205 172-349
1306 3-16 64 54 36-163
1308 6-16 89 76 82-163
1310 8-25 105 89 109-227
Model Cavity Diameter
of large
end of
crushing
cone
(mm)
Width of
Feeding
Opening(mm)
Max.
feeding
size
(mm)
Adjusting
Range of
Discharge
 Opening
 (mm)
Processing
capacity(t/h)
Main motor
power(kw)
Weight of
Main
Machine
(t)
HPM200 C1 900 210 178 22~38 160~250 160 10.1
C2 155 132 18~38 145~250
C3 130 110 14~38 120~250
F1 118 100 12~25 108~210
F2 90 76 10~25 81~210
F3 70 60 8~25 72~210
HPM300 C1 1100 235 200 26~45 230~445 250 17.8
C2 211 180 20~45 200~445
C3 135 115 16~45 180~445
F1 124 105 14~25 160~220
F2 96 82 12~25 140~220
F3 70 60 8~25 120~220
HPM400 C1 1400 330 280 26~51 270~630 315 25
C2 200 170 22~51 243~630
C3 152 130 16~51 210~630
F1 135 115 12~25 162~370
F2 106 90 10~25 126~370
F3 80 68 8~25 104~370
HPM500 C1 1500 335 285 32~51 365~790 400 34.1
C2 229 190 25~51 328~790
C3 180 152 19~51 280~790
F1 152 130 13~25 202~450
F2 124 105 10~25 158~450
F3 88 75 8~25 122~450
HPM800 C1 2000 385 326 32~51 616~1100 630 69.2
C2 350 298 25~51 522~1100
C3 280 238 16~51 380~1100
F1 160 136 13~25 328~730
F2 120 102 10~25 270~730
F3 90 77 8~25 166~730

Technical parameters of SC series single cylinder hydraulic cone crusher:

Model cavities Maximum Feeding Size(mm) Minimum Discharging Size(mm) install Power(kw) capacity(t/h)
SC(S)100 C1 250 22 90 85-170
C2 200 19 90 70-130
SC(S)160 C1 360 25 160 125-345
C2 300 22 160 108-305
SC(S)250 C1 450 35 250 267-605
C2 400 29 250 225-515
SC(S)315 C1 560 41 315 349-1050
C2 500 38 315 318-892

SC-S series of single cylinder hydraulic cone crusher parameters:

Model cavities Maximum Feeding Size(mm) Minimum Discharging Size(mm) install Power(kw) capacity(t/h)
SC100 F1 150 10 90 45-135
F2 90 10 90 43-118
F3 50 6 90 36-71
SC160 F1 200 13 160 69-215
F2 115 10 160 57-184
F3 75 8 160 63-126
SC250 F1 215 16 250 116-396
F2 140 13 250 97-328
F3 70 8 250 95-252
SC315 F1 275 16 315 177-662
F2 175 16 315 162-552
F3 85 13 315 195-401
SC560 F1 300 22 560 448-1512
F2 195 19 560 380-1373
F3 90 13 560 357-912
SC750 F1 370 25 750 394-2181
F2 300 19 750 342-2020
F3 230 16 750 267-1814
F4 120 13 750 248-1165
F5 85 10 750 185-1170

Related Projects of Cone Crusher

Our products have been exported to over 90 countries, such as Philippine, Pakistan, Vietnam, Papua New Guinea, Feiji, Tanzania, Ghana, Cameroon, Kenya, South Africa, Nigeria, Somalia, etc.
