Home >  Product  >  Sandstone equipment >  HVI Sand Making Machine

Factory-direct Sale HVI Sand Making Machine

HVI Sand Making Machine

Production Capacity70-585t/h

Feeding Size<30mm

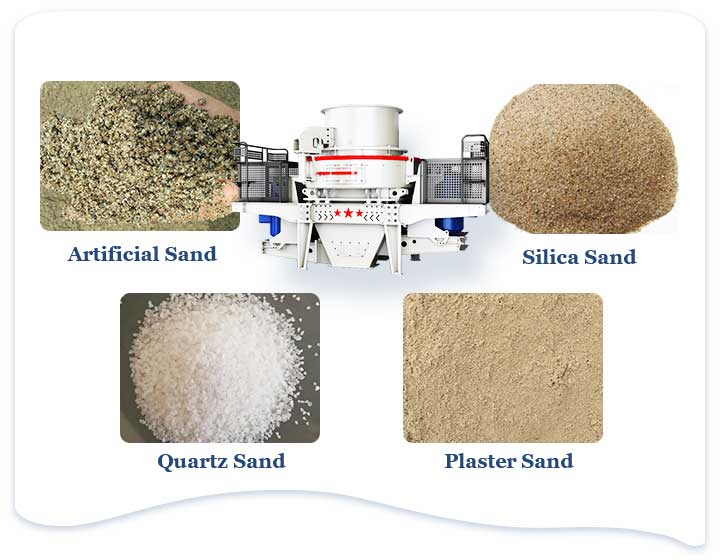

Processing material: rock, aggregate, gravel, granite, limestone, quartz, basalt, cobbble, dolomite, calcite, etc.

Introduction of HVI Sand Making Machine

HVI sand making machine is the latest sand making machine produced by our company, which is developed on the base of the decades of years' production experience and advanced technology.

One of its outstanding advantages is that it integrates the fuction of sand making and sand shaping on one machine. It not only guarantee the production efficiency, but also make the finished product shape qualified.

Moreover, its professional design and advanced structure also improve the performance and increase the service life.

Features of HVI Sand Making Machine

Deep cavity impeller increases the throughput by 30%; Side liners can be reversed upside down,increase its service life.

The machine can be easily changed to central feeding or peripheral feeding,Oil lubrication system or grease lubrication system can be choosen by adopting different modules.

Technical data:

Model Sand Shaping

Sand Making

Sand Shaping

Sand Making

Motor Power(kw)
Max.Feeding Size (mm) Throughput(t/h)
HVI 0815  <30 <35  70-140  130-230  2×75
HVI 0818 <30 <35 80-190 165-283 2×90
HVI 0922 <35 <40 105-145 220-330 2×110
HVI 0926 <35 <40 120-190 240-380 2×132
HVI 1032 <40 <45 181-278 246-356 2×160
HVI 1040 <40 <45 262-284 350-440 2×200
HVI 1250 <45 <50 345-371 414-540 2×250
HVI 1263 <50 <55 453-498 521-585 2×315
