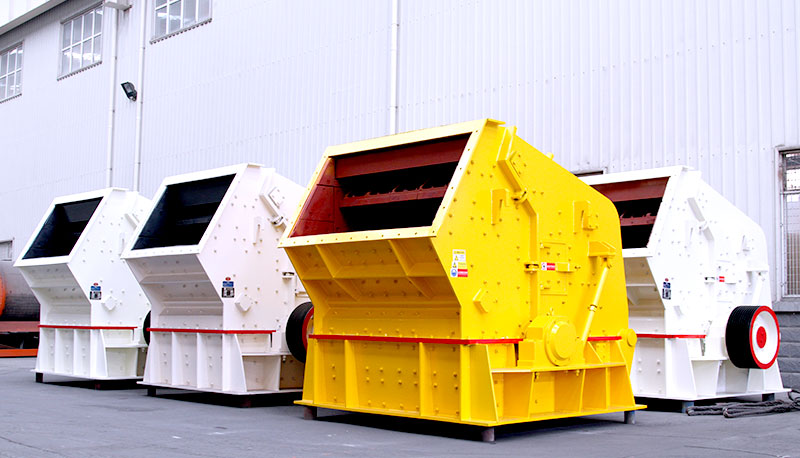

Impact Crusher

Impact crusher is used for secondary and fine crushing of stone and ores which compressive strength is not more than 350MPa, widely used in railway, highway, energy, cement, chemical, construction and other industries. The finished product is cubic, free of tension and cracks.

Applications

Function

To crush stones ores from big size into required smaller size.

Fields

Used in mining, quarry, construction, road, recycling, etc.

Minerals Processed

over 120 kinds of stones and metallic ores.

Processing Materials of Impact Crusher

It is widely used for secondary and fine (second and third stage) crushing of granite, river stone, quarry stone, rock, boulder, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.

  • undefined0-10mm
  • undefined10-20mm
  • undefined20-40mm
  • Finished Product
undefined

Working Principle of Impact Crusher

Driven by the motor, the rotor rotates at a high speed. When the material enters the impact area of the blower, it hits against with the blower, and then is thrown to the counterattack device to be crushed again, and then the materials bounce back to the hammer action area to be crushed again. This process is repeated. The material enters the first, second, and third counterattack chamber from large to small, and is repeatedly crushed until the material is crushed to the required particle size and discharged from the discharge port.

undefined

Advantages of Impact Crusher

High efficiency and energy saving

Large feed inlet, high crushing cavity, high hardness of processed materials and less stone powder.

Qualified particle shape

The gap between the counterattack plate and the hammer can be easily adjusted, effectively controlling the output size and the particle shape is good.

Optimized structure

Compact structure, strong rigidity, rotor with large moment of inertia.

High comprehensive benefit

High chrome plate hammer, impact resistance, abrasion resistance, high impact force.

2
undefined

Hot Issues of Impact Crusher

We have small, medium and large impact crusher for sale. Professional team will provide customized solution according to your needs.

Hot Sale Models of Impact Crusher

PF1007, PF1010, small impact crusher, small power consumption, low costs.

PF1210, PF1214, PF1315, large production capacity and high efficiency.

Hot Sale Production Capacity of Impact Crusher

30-70t/h, 50-90t/h, etc, usually for small production scale, with low costs.

70-100t/h, 100-150t/h, 250-300t/h, etc, usually for medium and large production scale.

The estimated price of the service

Product price: Price range is about 4000-500,000 dollars. Click for specific price.

Get quotes

Technical parameters

Model Specification
(mm)
Feed
Opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Overall
Dimension
(L×W×H)
(mm)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 80-180 6P   132 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 100-280 6P   200 3180×2720×3120
PF-1320 Φ1300×2000 993×2000 500 140-380 6P   250 3220×3100×3120
PF-1520 Φ1500×2000 830×2040 700 200-550 4P   315-400 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 800 300-800 4P   630-710 4400×3866×4009

Related Projects of Impact Crusher

Our products have been exported to over 90 countries, such as Philippine, Pakistan, Vietnam, Papua New Guinea, Feiji, Tanzania, Ghana, Cameroon, Kenya, South Africa, Nigeria, Somalia, etc.

Company Strength

As leading manufacturer and supplier in China, we have three large sized modern workshops, more than 260000 square meters, reliable and trustworthy. We are dedicated to be responsible for every procedure, every product and every customer. We provide single equipment and full product plant at 100% factory price for you.
